Titan HD 4-Post 14,000 lb Lift
Park it. Store it. Service it.
14,000 lb 4-post drive-on lift. Handles trucks and duallies. Optional rolling jacks for full service capability.
- 14,000 lb rated capacity
- 48-inch wide runways
- Drive-on design — no jack points needed
- Extra-long approach ramps
- Cable-driven equalization system
- Optional rolling bridge jacks
- Powder-coated finish
- ALI/ETL certified
✓ In Stock — Ships in 5-10 business days
Request a Quote
We respond within 24 hours — pricing, availability & shipping included
Quote Request Received
Thanks! We'll get back to you within 24 hours with pricing, availability, and shipping details for the Titan HD 4-Post 14,000 lb Lift.
| Rise | 70 inches |
| Motor | 220V single-phase, 2 HP |
| Capacity | 14,000 lbs |
| Platform | Drive-on open top |
| Warranty | 5 years structural, 2 years parts |
| Runway Width | 48 inches |
| Certification | ALI/ETL listed |
| Overall Width | 120 inches |
| Runway Length | 185 inches |
| Overall Height | 82 inches |

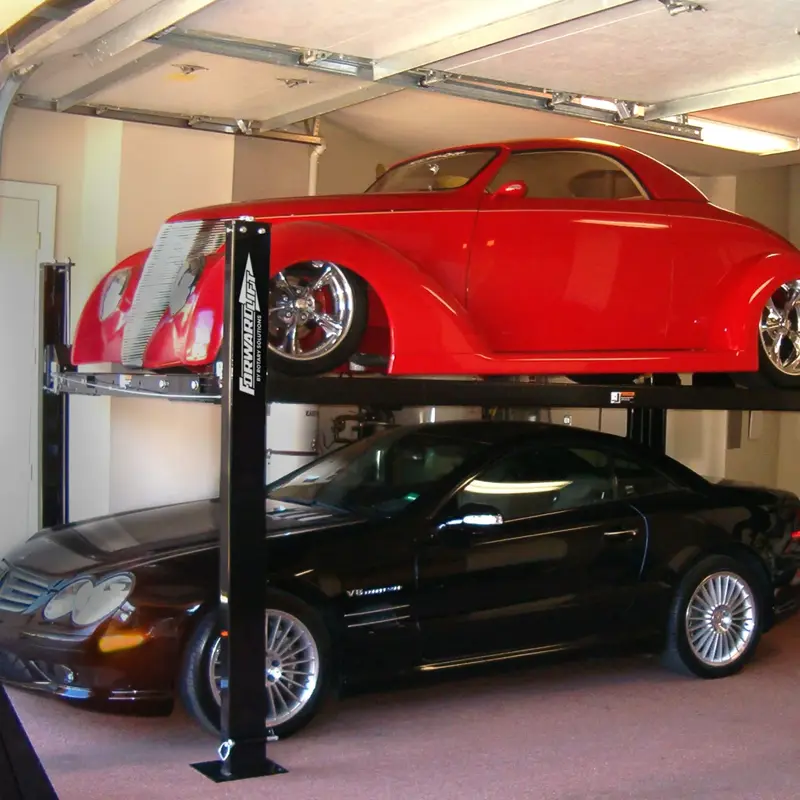

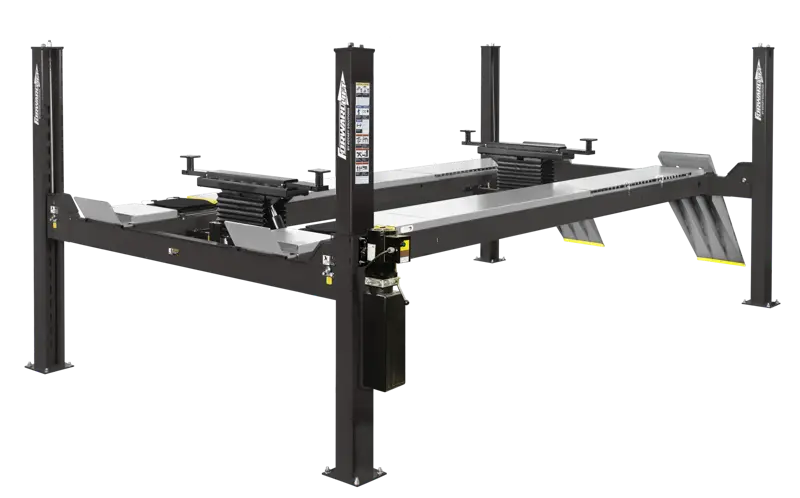

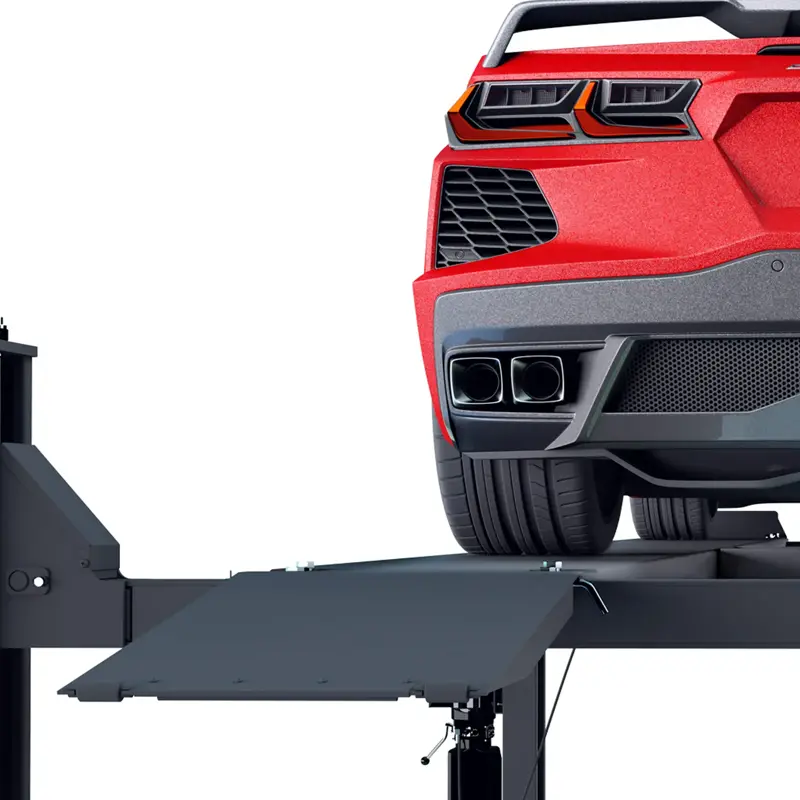

Multi-angle views of the Titan HD 4-Post 14,000 lb Lift. Click any image to zoom.
Watch the Titan HD 4-Post 14,000 lb Lift in action — full installation and operation demo.
Four-post lifts use a single hydraulic cylinder driving a cable-and-pulley system to raise all four runways simultaneously. The drive-on design makes loading fast — no arm adjustment required.
Power Unit
Electric-hydraulic system with a single low-pressure cylinder. Press and hold the "Up" button to raise. The system balances automatically through synchronized cables on all four columns.
Drive-On Runways
Drive onto the runways using the approach ramps. Position the vehicle centered front-to-back. The rubber bumpers on the runway ends act as wheel stops — no need to chalk or chock.
Multi-Position Locks
Spring-loaded safety locks click into the lock ladders on each column as you raise. You can stop at any locking position. Use the pneumatic lock release button (single press) to drop all locks simultaneously before lowering.
Rolling Bridge Jack
Optional sliding bridge jacks sit between the runways and let you lift individual wheels off the track for tire rotation, brake service, or alignment. Roll them fore or aft to position under the axle.
⚙️ Multi-Level Locks
Spring-loaded lock pawls engage in the lock ladder (typically every 3–6") as the lift rises. All four columns lock simultaneously — the lift cannot lower until all locks are released.
🔗 Redundant Cable System
Four independent lifting cables, each rated well above the full lift capacity. A cable-slack detection system triggers an immediate halt if any cable goes slack — preventing the runway from listing.
📐 Level Monitoring
Precision cable pulleys ensure all four corners rise at the same rate. Most models include a run-out limiter that cuts power if one corner gets more than 1" ahead of the others.
⏹️ Emergency Stop
Immediate-cut e-stop button on the control pendant halts all motion. The lift holds at its current position. Useful if a vehicle rolls forward on the runways during lifting.
How does this compare?
If you need storage and service from the same lift, 4-post is the move. The Titan’s 48″ runways beat most competitors (standard is 42″) which matters if you ever plan to lift a dually. The cable equalization is more reliable than chain systems long-term — less stretch, less maintenance.
