IronHorse Motorcycle Lift Table
Every bike deserves a proper workstation.
1,500 lb motorcycle lift with pneumatic-hydraulic pump. Full-width deck, integrated wheel vise, fold-down side extensions.
- 1,500 lb rated capacity
- Pneumatic-hydraulic foot pedal pump
- 33-inch max working height
- Integrated front wheel vise
- Fold-down side extensions
- Rear drop-out panel for wheel service
- Four tie-down points with ratchet straps
- Powder-coated steel deck
✓ In Stock — Ships in 5-10 business days
Request a Quote
We respond within 24 hours — pricing, availability & shipping included
Quote Request Received
Thanks! We'll get back to you within 24 hours with pricing, availability, and shipping details for the IronHorse Motorcycle Lift Table.
| Capacity | 1,500 lbs |
| Includes | Wheel chock, 4 ratchet straps, side extensions |
| Warranty | 2 years full |
| Pump Type | Pneumatic-hydraulic foot pedal |
| Deck Material | 14-gauge powder-coated steel |
| Lifting Range | 7″ to 33″ |
| Extended Width | 34″ with side panels |
| Table Dimensions | 84″ x 24″ |

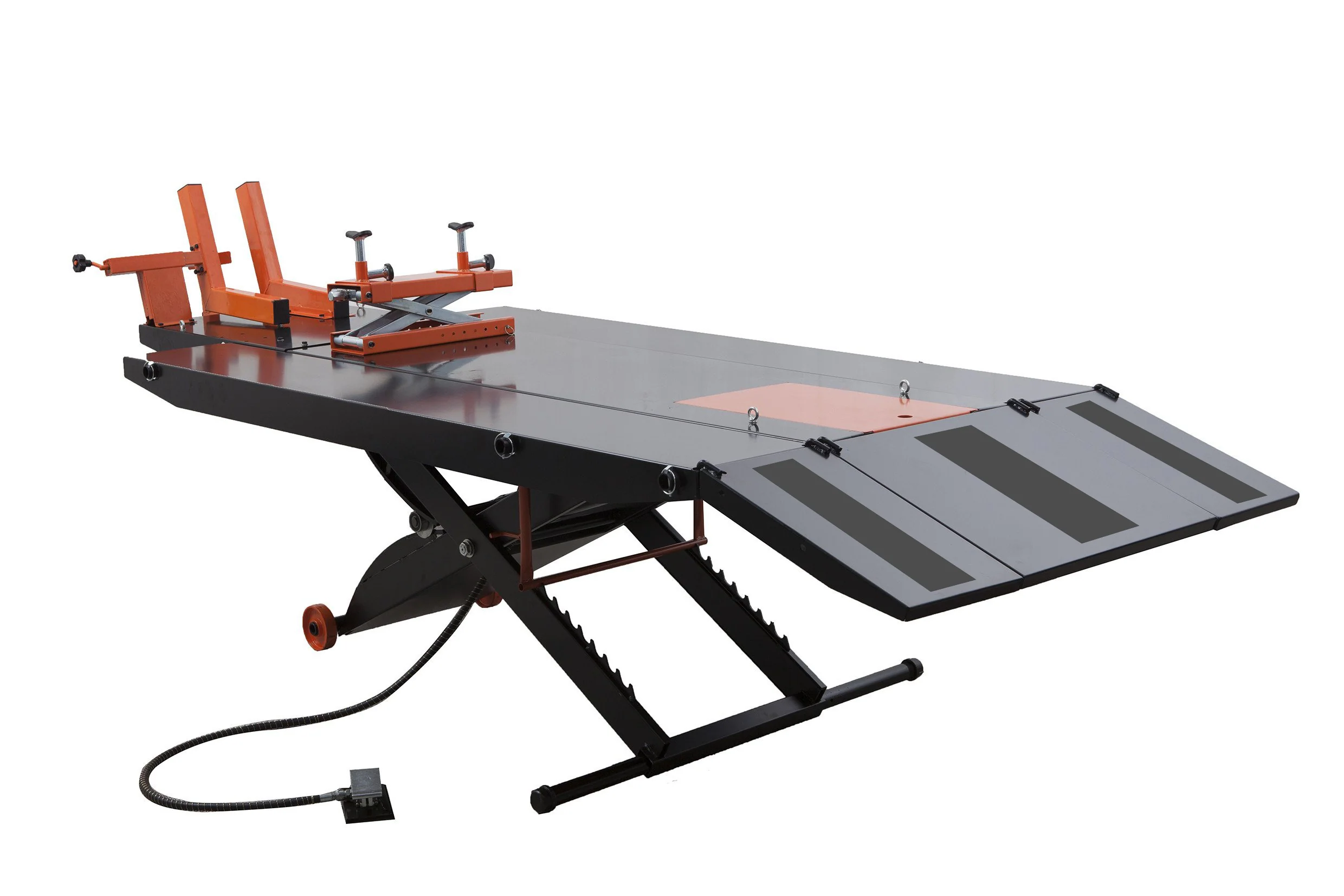

Multi-angle views of the IronHorse Motorcycle Lift Table. Click any image to zoom.
Watch the IronHorse Motorcycle Lift Table in action — full installation and operation demo.
Motorcycle lift tables use an air-over-hydraulic or electric-hydraulic system to raise the entire platform. Operation is simple — load the bike, secure it, pump up.
Pump / Air Control
Foot-pedal or hand pump on air-hydraulic models. On electric models, a hand pendant or foot switch raises and lowers. Most units raise a full-size touring bike in under 20 seconds.

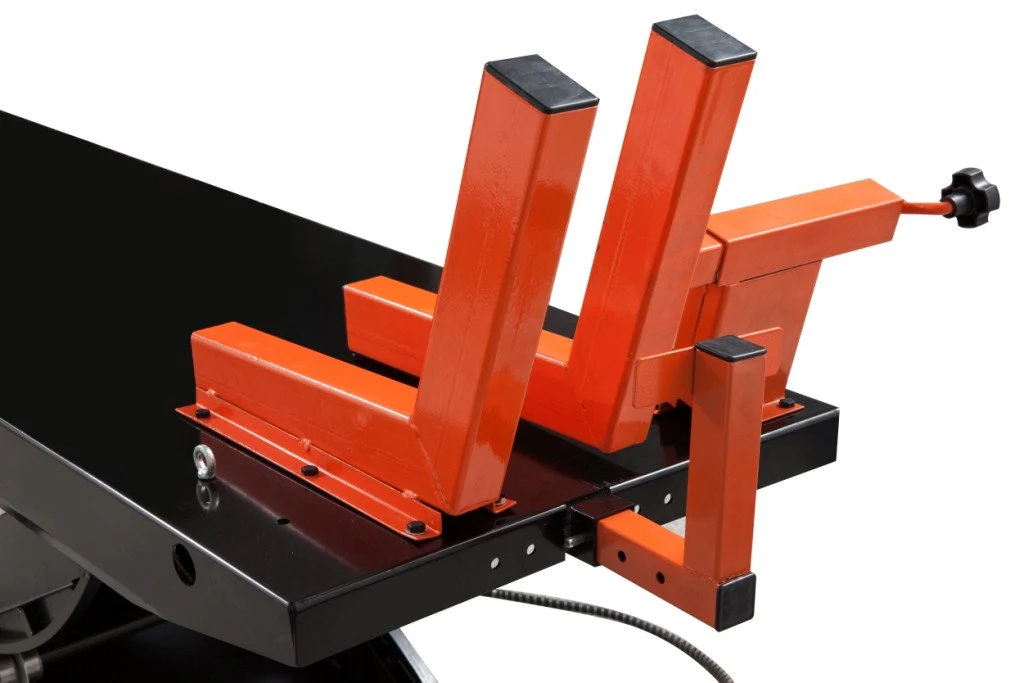

Front Wheel Vise
The steel wheel vise cradles the front tire and locks it in place with a quick-turn crank. Tighten until firm — a loose vise lets the bike tip forward at height. Adjust the vise position to match your wheelbase.
Safety Locks / Pins
Mechanical safety pins engage in the table frame as the platform rises. Before lowering, pull the safety pin release (usually a ring or handle on the side of the table). The platform lowers smoothly via the release valve.
Side Extensions
Bolt-on or latch-on side wings give your feet a place to land when mounting the bike at height. Always deploy the side extensions before stepping onto the platform with the bike.
⚙️ Mechanical Safety Pins

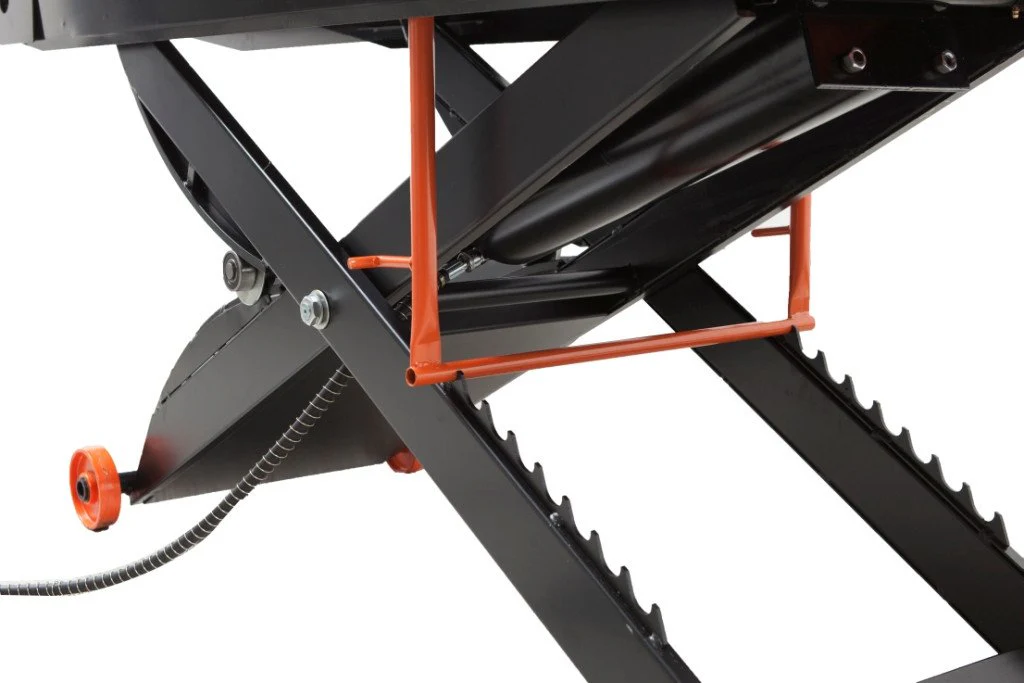

The platform frame has a series of holes along the lifting column. As the platform rises, a spring-loaded pin drops into the nearest hole automatically. You must manually pull the release before lowering.
🏍️ Wheel Vise & Tie-Downs
The front wheel vise locks the motorcycle in the longitudinal axis. Tie-down anchor points are welded into the deck corners — never raise a motorcycle without strapping it to the table.
🛡️ Overload Valve
A hydraulic pressure-relief valve prevents the pump from over-pressurizing if the load exceeds the table's rating. The platform simply won't rise — you won't damage the cylinder or pump.
📐 Four-Corner Stability
Wide-stance rectangular frame construction keeps the center of gravity low. Side extensions increase the effective footprint significantly — always deploy them before raising a heavy bike above waist height.
How does this compare?
Most motorcycle lifts under $2K are either flimsy or manual-crank nightmares. The IronHorse splits the difference — pneumatic-hydraulic pump is faster than manual and more reliable than full-electric at this price. The drop-out rear panel is a feature usually reserved for $3K+ lifts.
