IronMax XL 4-Post 18,000 lb Heavy Duty
For when the 4-post section of the catalog doesn't cut it.
$7,999
18,000 lb 4-post lift with 60-inch runways for heavy trucks, dualies, and cargo vans. Cable equalization, dual power units, bridge jacks included.
- 18,000 lb rated capacity
- 60-inch wide runways for dual-rear-wheel trucks
- Dual independent 220V power units
- Cable equalization — level under offset loads
- Bridge jacks included (alignment-ready)
- Eight adjustable column pads
- Extra-long approach ramps (24”)
- ALI/ETL certified
✓ In Stock — Ships in 5-10 business days

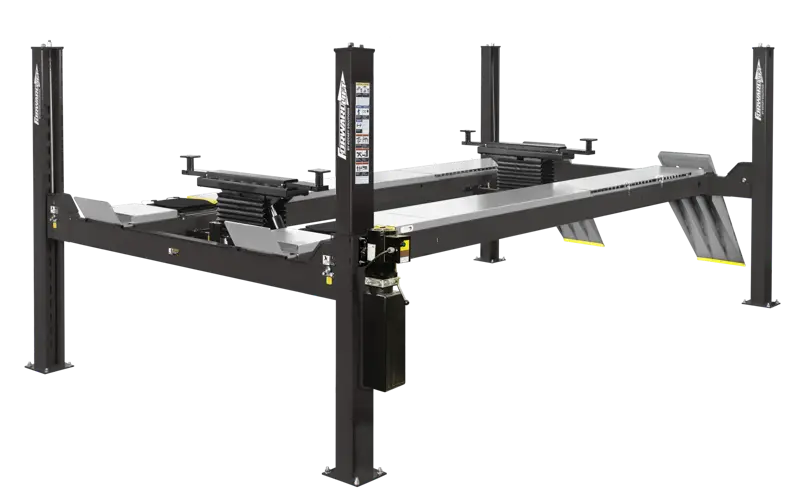

The IronMax XL is a heavy-duty 4-post platform lift rated to 18,000 lbs on 60” wide runways — designed for the vehicles that outgrow standard 4-post lifts. F-450 dually with a service body? Loaded Ram 3500 with a flatbed? Extended wheelbase cargo van? The IronMax handles them. The 60” runways handle wide dual-rear-wheel configurations without modification. Cable-driven equalization with dual power units prevents canting under offset loads. Optional bridge jacks (included) convert it to a full alignment-capable service lift. The 220V power units run independently for redundancy. Eight adjustable column pads for secure parking on uneven loads.
| Rise | 74 inches |
| Capacity | 18,000 lbs |
| Warranty | 5 years structural, 2 years parts |
| Power Unit | Dual 220V single-phase, 2 HP each |
| Equalization | Cable-driven, dual-cylinder |
| Runway Width | 60 inches (per side) |
| Approach Ramp | 24” tapered |
| Certification | ALI/ETL listed |
| Runway Length | 198 inches |
How does this compare?
Standard 4-post lifts run 42” to 48” runways and 14,000 lb capacity. A dually pickup with a bed full of tools can hit 12,000–14,000 lbs — at 95%+ of rated capacity with a non-optimal weight distribution. The IronMax XL gives you proper margin and the runway width for dual-rear-wheels. The bridge jacks turn it from a storage lift into a full service unit.
